Regularized Training#
Notebook by:
Royi Avital RoyiAvital@fixelalgorithms.com
Revision History#
Version |
Date |
User |
Content / Changes |
|---|---|---|---|
1.0.000 |
04/07/2024 |
Royi Avital |
First version |
# Import Packages
# General Tools
import numpy as np
import scipy as sp
import pandas as pd
# Machine Learning
from sklearn.metrics import confusion_matrix, ConfusionMatrixDisplay
from sklearn.model_selection import ParameterGrid
# Deep Learning
import torch
import torch.nn as nn
import torch.nn.functional as F
from torch.optim.optimizer import Optimizer
from torch.optim.lr_scheduler import LRScheduler
from torch.utils.data import DataLoader
from torch.utils.tensorboard import SummaryWriter
import torchinfo
from torchmetrics.classification import MulticlassAccuracy
import torchvision
from torchvision.transforms import v2 as TorchVisionTrns
# Miscellaneous
import copy
from enum import auto, Enum, unique
import math
import os
from platform import python_version
import random
import shutil
import time
# Typing
from typing import Callable, Dict, Generator, List, Optional, Self, Set, Tuple, Union
# Visualization
import matplotlib as mpl
import matplotlib.pyplot as plt
import seaborn as sns
# Jupyter
from IPython import get_ipython
from IPython.display import HTML, Image
from IPython.display import display
from ipywidgets import Dropdown, FloatSlider, interact, IntSlider, Layout, SelectionSlider
from ipywidgets import interact
2024-06-14 06:48:47.888745: I tensorflow/core/platform/cpu_feature_guard.cc:182] This TensorFlow binary is optimized to use available CPU instructions in performance-critical operations.
To enable the following instructions: SSE4.1 SSE4.2 AVX AVX2 FMA, in other operations, rebuild TensorFlow with the appropriate compiler flags.
Notations#
(?) Question to answer interactively.
(!) Simple task to add code for the notebook.
(@) Optional / Extra self practice.
(#) Note / Useful resource / Food for thought.
Code Notations:
someVar = 2; #<! Notation for a variable
vVector = np.random.rand(4) #<! Notation for 1D array
mMatrix = np.random.rand(4, 3) #<! Notation for 2D array
tTensor = np.random.rand(4, 3, 2, 3) #<! Notation for nD array (Tensor)
tuTuple = (1, 2, 3) #<! Notation for a tuple
lList = [1, 2, 3] #<! Notation for a list
dDict = {1: 3, 2: 2, 3: 1} #<! Notation for a dictionary
oObj = MyClass() #<! Notation for an object
dfData = pd.DataFrame() #<! Notation for a data frame
dsData = pd.Series() #<! Notation for a series
hObj = plt.Axes() #<! Notation for an object / handler / function handler
Code Exercise#
Single line fill
vallToFill = ???
Multi Line to Fill (At least one)
# You need to start writing
????
Section to Fill
#===========================Fill This===========================#
# 1. Explanation about what to do.
# !! Remarks to follow / take under consideration.
mX = ???
???
#===============================================================#
# Configuration
# %matplotlib inline
seedNum = 512
np.random.seed(seedNum)
random.seed(seedNum)
# Matplotlib default color palette
lMatPltLibclr = ['#1f77b4', '#ff7f0e', '#2ca02c', '#d62728', '#9467bd', '#8c564b', '#e377c2', '#7f7f7f', '#bcbd22', '#17becf']
# sns.set_theme() #>! Apply SeaBorn theme
runInGoogleColab = 'google.colab' in str(get_ipython())
# Improve performance by benchmarking
torch.backends.cudnn.benchmark = True
# Reproducibility (Per PyTorch Version on the same device)
# torch.manual_seed(seedNum)
# torch.backends.cudnn.deterministic = True
# torch.backends.cudnn.benchmark = False #<! Makes things slower
# Constants
FIG_SIZE_DEF = (8, 8)
ELM_SIZE_DEF = 50
CLASS_COLOR = ('b', 'r')
EDGE_COLOR = 'k'
MARKER_SIZE_DEF = 10
LINE_WIDTH_DEF = 2
DATA_SET_FILE_NAME = 'archive.zip'
DATA_SET_FOLDER_NAME = 'IntelImgCls'
D_CLASSES = {0: 'Airplane', 1: 'Automobile', 2: 'Bird', 3: 'Cat', 4: 'Deer', 5: 'Dog', 6: 'Frog', 7: 'Horse', 8: 'Ship', 9: 'Truck'}
L_CLASSES = ['Airplane', 'Automobile', 'Bird', 'Cat', 'Deer', 'Dog', 'Frog', 'Horse', 'Ship', 'Truck']
T_IMG_SIZE = (32, 32, 3)
DATA_FOLDER_PATH = 'Data'
TENSOR_BOARD_BASE = 'TB'
# Download Auxiliary Modules for Google Colab
if runInGoogleColab:
!wget https://raw.githubusercontent.com/FixelAlgorithmsTeam/FixelCourses/master/AIProgram/2024_02/DataManipulation.py
!wget https://raw.githubusercontent.com/FixelAlgorithmsTeam/FixelCourses/master/AIProgram/2024_02/DataVisualization.py
!wget https://raw.githubusercontent.com/FixelAlgorithmsTeam/FixelCourses/master/AIProgram/2024_02/DeepLearningPyTorch.py
# Courses Packages
import sys
sys.path.append('../../utils')
sys.path.append('/home/vlad/utils')
from DataVisualization import PlotLabelsHistogram, PlotMnistImages
from DeepLearningPyTorch import ResidualBlock, TBLogger, TestDataSet
from DeepLearningPyTorch import GenDataLoaders, InitWeightsKaiNorm, TrainModel, TrainModelSch
# General Auxiliary Functions
def GenResNetModel( trainedModel: bool, numCls: int, resNetDepth: int = 18 ) -> nn.Module:
# Read on the API change at: How to Train State of the Art Models Using TorchVision’s Latest Primitives
# https://pytorch.org/blog/how-to-train-state-of-the-art-models-using-torchvision-latest-primitives
if (resNetDepth == 18):
modelFun = torchvision.models.resnet18
modelWeights = torchvision.models.ResNet18_Weights.IMAGENET1K_V1
elif (resNetDepth == 34):
modelFun = torchvision.models.resnet34
modelWeights = torchvision.models.ResNet34_Weights.IMAGENET1K_V1
else:
raise ValueError(f'The `resNetDepth`: {resNetDepth} is invalid!')
if trainedModel:
oModel = modelFun(weights = modelWeights)
numFeaturesIn = oModel.fc.in_features
# Assuming numCls << 100
oModel.fc = nn.Sequential(
nn.Linear(numFeaturesIn, 128), nn.ReLU(),
nn.Linear(128, numCls),
)
else:
oModel = modelFun(weights = None, num_classes = numCls)
return oModel
Regularized Training#
This notebook combines several regularization methods in order to maximize the validation score.
This notebook demonstrate:

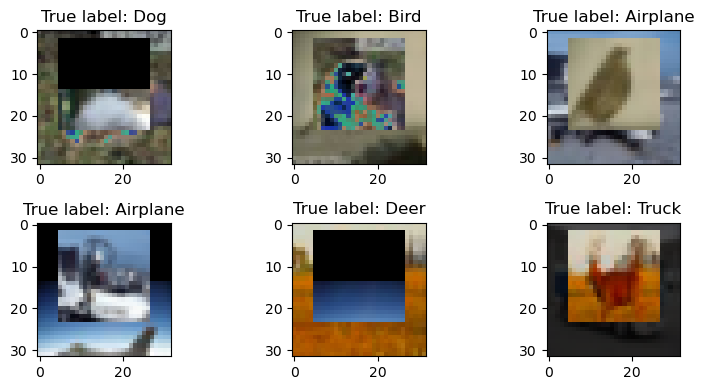

Using data augmentation using CutMix.
Using Label Smoothing.
# Parameters
# Data
# Model
dropP = 0.5 #<! Dropout Layer
# Training
batchSize = 256
numWorkers = 4 #<! Number of workers
numEpochs = 35
ϵ = 0.1 #<! Label Smoothing
# Visualization
numImg = 3
Generate / Load Data#
Load the CIFAR 10 Data Set.
It is composed of 60,000 RGB images of size 32x32 with 10 classes uniformly spread.
(#) The dataset is retrieved using Torch Vision’s built in datasets.
# Load Data
dsTrain = torchvision.datasets.CIFAR10(root = DATA_FOLDER_PATH, train = True, download = True, transform = torchvision.transforms.ToTensor())
dsVal = torchvision.datasets.CIFAR10(root = DATA_FOLDER_PATH, train = False, download = True, transform = torchvision.transforms.ToTensor())
lClass = dsTrain.classes
print(f'The training data set data shape: {dsTrain.data.shape}')
print(f'The test data set data shape: {dsVal.data.shape}')
print(f'The unique values of the labels: {np.unique(lClass)}')
Files already downloaded and verified
Files already downloaded and verified
The training data set data shape: (50000, 32, 32, 3)
The test data set data shape: (10000, 32, 32, 3)
The unique values of the labels: ['airplane' 'automobile' 'bird' 'cat' 'deer' 'dog' 'frog' 'horse' 'ship'
'truck']
(#) The dataset is indexible (Subscriptable). It returns a tuple of the features and the label.
(#) While data is arranged as
H x W x Cthe transformer, when accessing the data, will convert it intoC x H x W.
# Element of the Data Set
mX, valY = dsTrain[0]
print(f'The features shape: {mX.shape}')
print(f'The label value: {valY}')
The features shape: torch.Size([3, 32, 32])
The label value: 6
Plot the Data#
# Extract Data
tX = dsTrain.data #<! NumPy Tensor (NDarray)
mX = np.reshape(tX, (tX.shape[0], -1))
vY = dsTrain.targets #<! NumPy Vector
# Plot the Data
hF = PlotMnistImages(mX, vY, numImg, tuImgSize = T_IMG_SIZE)
# Histogram of Labels
hA = PlotLabelsHistogram(vY, lClass = L_CLASSES)
plt.show()
(?) If data is converted into grayscale, how would it effect the performance of the classifier? Explain.
You may assume the conversion is done using the mean value of the RGB pixel.
Pre Process Data#
This section normalizes the data to have zero mean and unit variance per channel.
It is required to calculate:
The average pixel value per channel.
The standard deviation per channel.
(#) The values calculated on the train set and applied to both sets.
(#) The the data will be used to pre process the image on loading by the
transformer.(#) There packages which specializes in transforms:
Kornia,Albumentations.
They are commonly used for Data Augmentation at scale.
# Calculate the Standardization Parameters
vMean = np.mean(dsTrain.data / 255.0, axis = (0, 1, 2))
vStd = np.std(dsVal.data / 255.0, axis = (0, 1, 2))
print('µ =', vMean)
print('σ =', vStd)
µ = [0.49139968 0.48215841 0.44653091]
σ = [0.24665252 0.24289226 0.26159238]
# Update Transformer
oTrnsTrain = TorchVisionTrns.Compose([
TorchVisionTrns.RandomHorizontalFlip(), #<! Can be done in UINT8 for faster performance
TorchVisionTrns.AutoAugment(policy = TorchVisionTrns.AutoAugmentPolicy.CIFAR10), #<! Requires `UINT8`
TorchVisionTrns.ToImage(),
TorchVisionTrns.ToDtype(torch.float32, scale = True),
TorchVisionTrns.Normalize(vMean, vStd)
])
oTrnsInfer = TorchVisionTrns.Compose([
TorchVisionTrns.ToImage(),
TorchVisionTrns.ToDtype(torch.float32, scale = True),
TorchVisionTrns.Normalize(vMean, vStd)
])
# Update the DS transformer
dsTrain.transform = oTrnsTrain
dsVal.transform = oTrnsInfer

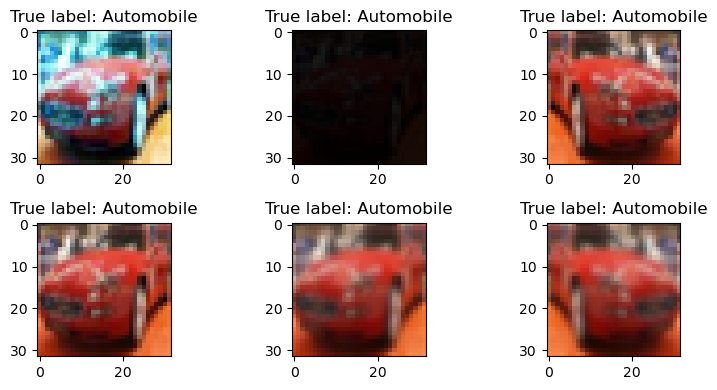

# "Normalized" Image
imgIdx = 5
N, H, W, C = dsTrain.data.shape
hF, vHA = plt.subplots(2, 3, figsize = (8, 4))
vHA = vHA.flat
for hA in vHA:
mX, valY = dsTrain[imgIdx] #<! Random
mX = torch.permute(mX, (1, 2, 0))
hA.imshow(torch.clip(mX * vStd[None, None, :] + vMean[None, None, :], min = 0.0, max = 1.0))
hA.set_title(f'True label: {L_CLASSES[valY]}')
hF.tight_layout()
Data Loaders#
This section defines the data loaded.
# Data Loader
dlTrain = torch.utils.data.DataLoader(dsTrain, shuffle = True, batch_size = 1 * batchSize, num_workers = 2, drop_last = True, persistent_workers = True)
dlVal = torch.utils.data.DataLoader(dsVal, shuffle = False, batch_size = 2 * batchSize, num_workers = 2, persistent_workers = True)
# dlTrain = torch.utils.data.DataLoader(dsTrain, shuffle = True, batch_size = 1 * batchSize, num_workers = 0, drop_last = True)
# dlVal = torch.utils.data.DataLoader(dsVal, shuffle = False, batch_size = 2 * batchSize, num_workers = 0)
# Iterate on the Loader
# The first batch.
tX, vY = next(iter(dlTrain)) #<! PyTorch Tensors
print(f'The batch features dimensions: {tX.shape}')
print(f'The batch labels dimensions: {vY.shape}')
The batch features dimensions: torch.Size([256, 3, 32, 32])
The batch labels dimensions: torch.Size([256])
# Looping
# for ii, (tX, vY) in zip(range(1), dlVal): #<! https://stackoverflow.com/questions/36106712
# print(f'The batch features dimensions: {tX.shape}')
# print(f'The batch labels dimensions: {vY.shape}')
Load the Model#
This section loads the model.
The number of outputs is adjusted to match the number of classes in the data.
# Loading a Pre Defined Model
oModel = GenResNetModel(trainedModel = False, numCls = len(L_CLASSES))
# oModel.apply(InitWeightsKaiNorm)
# Model Information - Pre Defined
# Pay attention to the layers name.
torchinfo.summary(oModel, (batchSize, *(T_IMG_SIZE[::-1])), col_names = ['kernel_size', 'output_size', 'num_params'], device = 'cpu', row_settings = ['depth', 'var_names'])
========================================================================================================================
Layer (type (var_name):depth-idx) Kernel Shape Output Shape Param #
========================================================================================================================
ResNet (ResNet) -- [256, 10] --
├─Conv2d (conv1): 1-1 [7, 7] [256, 64, 16, 16] 9,408
├─BatchNorm2d (bn1): 1-2 -- [256, 64, 16, 16] 128
├─ReLU (relu): 1-3 -- [256, 64, 16, 16] --
├─MaxPool2d (maxpool): 1-4 3 [256, 64, 8, 8] --
├─Sequential (layer1): 1-5 -- [256, 64, 8, 8] --
│ └─BasicBlock (0): 2-1 -- [256, 64, 8, 8] --
│ │ └─Conv2d (conv1): 3-1 [3, 3] [256, 64, 8, 8] 36,864
│ │ └─BatchNorm2d (bn1): 3-2 -- [256, 64, 8, 8] 128
│ │ └─ReLU (relu): 3-3 -- [256, 64, 8, 8] --
│ │ └─Conv2d (conv2): 3-4 [3, 3] [256, 64, 8, 8] 36,864
│ │ └─BatchNorm2d (bn2): 3-5 -- [256, 64, 8, 8] 128
│ │ └─ReLU (relu): 3-6 -- [256, 64, 8, 8] --
│ └─BasicBlock (1): 2-2 -- [256, 64, 8, 8] --
│ │ └─Conv2d (conv1): 3-7 [3, 3] [256, 64, 8, 8] 36,864
│ │ └─BatchNorm2d (bn1): 3-8 -- [256, 64, 8, 8] 128
│ │ └─ReLU (relu): 3-9 -- [256, 64, 8, 8] --
│ │ └─Conv2d (conv2): 3-10 [3, 3] [256, 64, 8, 8] 36,864
│ │ └─BatchNorm2d (bn2): 3-11 -- [256, 64, 8, 8] 128
│ │ └─ReLU (relu): 3-12 -- [256, 64, 8, 8] --
├─Sequential (layer2): 1-6 -- [256, 128, 4, 4] --
│ └─BasicBlock (0): 2-3 -- [256, 128, 4, 4] --
│ │ └─Conv2d (conv1): 3-13 [3, 3] [256, 128, 4, 4] 73,728
│ │ └─BatchNorm2d (bn1): 3-14 -- [256, 128, 4, 4] 256
│ │ └─ReLU (relu): 3-15 -- [256, 128, 4, 4] --
│ │ └─Conv2d (conv2): 3-16 [3, 3] [256, 128, 4, 4] 147,456
│ │ └─BatchNorm2d (bn2): 3-17 -- [256, 128, 4, 4] 256
│ │ └─Sequential (downsample): 3-18 -- [256, 128, 4, 4] 8,448
│ │ └─ReLU (relu): 3-19 -- [256, 128, 4, 4] --
│ └─BasicBlock (1): 2-4 -- [256, 128, 4, 4] --
│ │ └─Conv2d (conv1): 3-20 [3, 3] [256, 128, 4, 4] 147,456
│ │ └─BatchNorm2d (bn1): 3-21 -- [256, 128, 4, 4] 256
│ │ └─ReLU (relu): 3-22 -- [256, 128, 4, 4] --
│ │ └─Conv2d (conv2): 3-23 [3, 3] [256, 128, 4, 4] 147,456
│ │ └─BatchNorm2d (bn2): 3-24 -- [256, 128, 4, 4] 256
│ │ └─ReLU (relu): 3-25 -- [256, 128, 4, 4] --
├─Sequential (layer3): 1-7 -- [256, 256, 2, 2] --
│ └─BasicBlock (0): 2-5 -- [256, 256, 2, 2] --
│ │ └─Conv2d (conv1): 3-26 [3, 3] [256, 256, 2, 2] 294,912
│ │ └─BatchNorm2d (bn1): 3-27 -- [256, 256, 2, 2] 512
│ │ └─ReLU (relu): 3-28 -- [256, 256, 2, 2] --
│ │ └─Conv2d (conv2): 3-29 [3, 3] [256, 256, 2, 2] 589,824
│ │ └─BatchNorm2d (bn2): 3-30 -- [256, 256, 2, 2] 512
│ │ └─Sequential (downsample): 3-31 -- [256, 256, 2, 2] 33,280
│ │ └─ReLU (relu): 3-32 -- [256, 256, 2, 2] --
│ └─BasicBlock (1): 2-6 -- [256, 256, 2, 2] --
│ │ └─Conv2d (conv1): 3-33 [3, 3] [256, 256, 2, 2] 589,824
│ │ └─BatchNorm2d (bn1): 3-34 -- [256, 256, 2, 2] 512
│ │ └─ReLU (relu): 3-35 -- [256, 256, 2, 2] --
│ │ └─Conv2d (conv2): 3-36 [3, 3] [256, 256, 2, 2] 589,824
│ │ └─BatchNorm2d (bn2): 3-37 -- [256, 256, 2, 2] 512
│ │ └─ReLU (relu): 3-38 -- [256, 256, 2, 2] --
├─Sequential (layer4): 1-8 -- [256, 512, 1, 1] --
│ └─BasicBlock (0): 2-7 -- [256, 512, 1, 1] --
│ │ └─Conv2d (conv1): 3-39 [3, 3] [256, 512, 1, 1] 1,179,648
│ │ └─BatchNorm2d (bn1): 3-40 -- [256, 512, 1, 1] 1,024
│ │ └─ReLU (relu): 3-41 -- [256, 512, 1, 1] --
│ │ └─Conv2d (conv2): 3-42 [3, 3] [256, 512, 1, 1] 2,359,296
│ │ └─BatchNorm2d (bn2): 3-43 -- [256, 512, 1, 1] 1,024
│ │ └─Sequential (downsample): 3-44 -- [256, 512, 1, 1] 132,096
│ │ └─ReLU (relu): 3-45 -- [256, 512, 1, 1] --
│ └─BasicBlock (1): 2-8 -- [256, 512, 1, 1] --
│ │ └─Conv2d (conv1): 3-46 [3, 3] [256, 512, 1, 1] 2,359,296
│ │ └─BatchNorm2d (bn1): 3-47 -- [256, 512, 1, 1] 1,024
│ │ └─ReLU (relu): 3-48 -- [256, 512, 1, 1] --
│ │ └─Conv2d (conv2): 3-49 [3, 3] [256, 512, 1, 1] 2,359,296
│ │ └─BatchNorm2d (bn2): 3-50 -- [256, 512, 1, 1] 1,024
│ │ └─ReLU (relu): 3-51 -- [256, 512, 1, 1] --
├─AdaptiveAvgPool2d (avgpool): 1-9 -- [256, 512, 1, 1] --
├─Linear (fc): 1-10 -- [256, 10] 5,130
========================================================================================================================
Total params: 11,181,642
Trainable params: 11,181,642
Non-trainable params: 0
Total mult-adds (Units.GIGABYTES): 9.48
========================================================================================================================
Input size (MB): 3.15
Forward/backward pass size (MB): 207.64
Params size (MB): 44.73
Estimated Total Size (MB): 255.51
========================================================================================================================
(?) Does the last (Head) dense layer includes a bias? Explain.
Train the Model#
This section trains the model.
It compares results with and without Label Smoothing.
(#) The objective is to show how to apply Label Smoothing.
CutMix#
There are 2 options to incorporate the CutMix (Or MixUp):
The Training Loop.
The Data Loader.
The (1) option requires adapting the training loop after fetching the batch.
The (2) option works with no change of the training loop.
This section implements the (2) option.
This requires altering the collate_fn of the data loader.
The collate_fn takes a list of items where each item is a single output of DataSet object.
For example, in image classification the output of the DataSet is usually a tuple of (imge, label).
Hence the input to collate_fn is a list (Length of batchSize) of such tuples and the output is a tuple of 2 tensors.
(#) The
CutMix/MixUpcan’t be incorporated into theDataSettransform as they require multiple images at once.(#) PyTorch
CutMix.(#) PyTorch How to use CutMix and MixUp.
(#) PyTorch Working with
collate_fn.(#) PyTorch Datasets, DataLoader, Samplers and the
collat_fn.
# Update the Collate Function
from torch.utils.data import default_collate
α = 0.5
numCls = len(L_CLASSES)
oCutMix = TorchVisionTrns.CutMix(alpha = α, num_classes = numCls) #<! `num_classes` must be defined for integer label
def CutMixColateFun( lBatch: List[Tuple] ) -> Tuple[torch.Tensor, torch.Tensor]:
return oCutMix(*default_collate(lBatch))
# Generate the Data Loaders
# Custom collate function seems to not work with `numWorkers > 0` on Windows.
dlTrain, dlVal = GenDataLoaders(dsTrain, dsVal, batchSize, numWorkers = 0, CollateFn = CutMixColateFun)
# Iterate on the Loader
# The first batch.
tX, mY = next(iter(dlTrain)) #<! PyTorch Tensors
print(f'The batch features dimensions: {tX.shape}')
print(f'The batch labels dimensions: {vY.shape}')
The batch features dimensions: torch.Size([256, 3, 32, 32])
The batch labels dimensions: torch.Size([256])
# Data from Data Loader
hF, vHA = plt.subplots(2, 3, figsize = (8, 4))
vHA = vHA.flat
for hA, mXX, vYY in zip(vHA, tX, mY):
valY = torch.argmax(vYY)
mX = torch.permute(mXX, (1, 2, 0))
hA.imshow(torch.clip(mX * vStd[None, None, :] + vMean[None, None, :], min = 0.0, max = 1.0))
hA.set_title(f'True label: {L_CLASSES[valY]}')
hF.tight_layout()
# Run Device
runDevice = torch.device('cuda:0' if torch.cuda.is_available() else 'cpu') #<! The 1st CUDA device
# Loss and Score Function
hL = nn.CrossEntropyLoss(label_smoothing = ϵ)
# The Score
# Adjusting the score to support the labels in a form od discrete distribution
def hS( mZ: torch.Tensor, mY: torch.Tensor ):
numDim = mY.ndim
vZ = torch.argmax(mZ, dim = 1)
if numDim > 1: #<! Discrete Distribution
vY = torch.argmax(mY, dim = 1)
else: #<! Label as an integer
vY = mY
return torch.sum(torch.eq(vZ, vY)) / vZ.shape[0]
# Training Loop
oModel = oModel.to(runDevice)
oOpt = torch.optim.AdamW(oModel.parameters(), lr = 1e-3, betas = (0.9, 0.99), weight_decay = 1e-2) #<! Define optimizer
oSch = torch.optim.lr_scheduler.OneCycleLR(oOpt, max_lr = 5e-2, total_steps = numEpochs)
_, lTrainLoss, lTrainScore, lValLoss, lValScore, lLearnRate = TrainModel(oModel, dlTrain, dlVal, oOpt, numEpochs, hL, hS, oSch = oSch)
Epoch 1 / 35 | Train Loss: 2.179 | Val Loss: 1.734 | Train Score: 0.242 | Val Score: 0.443 | Epoch Time: 69.53 | <-- Checkpoint! |
Epoch 2 / 35 | Train Loss: 2.049 | Val Loss: 1.625 | Train Score: 0.331 | Val Score: 0.517 | Epoch Time: 40.20 | <-- Checkpoint! |
Epoch 3 / 35 | Train Loss: 2.039 | Val Loss: 2.568 | Train Score: 0.342 | Val Score: 0.482 | Epoch Time: 45.42 |
Epoch 4 / 35 | Train Loss: 2.024 | Val Loss: 1.547 | Train Score: 0.352 | Val Score: 0.539 | Epoch Time: 41.74 | <-- Checkpoint! |
Epoch 5 / 35 | Train Loss: 1.956 | Val Loss: 1.498 | Train Score: 0.386 | Val Score: 0.558 | Epoch Time: 45.16 | <-- Checkpoint! |
Epoch 6 / 35 | Train Loss: 1.941 | Val Loss: 1.427 | Train Score: 0.402 | Val Score: 0.604 | Epoch Time: 41.91 | <-- Checkpoint! |
Epoch 7 / 35 | Train Loss: 1.937 | Val Loss: 1.494 | Train Score: 0.405 | Val Score: 0.586 | Epoch Time: 47.90 |
Epoch 8 / 35 | Train Loss: 1.911 | Val Loss: 1.472 | Train Score: 0.419 | Val Score: 0.573 | Epoch Time: 41.30 |
Epoch 9 / 35 | Train Loss: 1.879 | Val Loss: 1.383 | Train Score: 0.439 | Val Score: 0.620 | Epoch Time: 45.40 | <-- Checkpoint! |
Epoch 10 / 35 | Train Loss: 1.884 | Val Loss: 1.433 | Train Score: 0.437 | Val Score: 0.594 | Epoch Time: 41.98 |
Epoch 11 / 35 | Train Loss: 1.827 | Val Loss: 1.377 | Train Score: 0.464 | Val Score: 0.614 | Epoch Time: 45.77 |
Epoch 12 / 35 | Train Loss: 1.818 | Val Loss: 1.309 | Train Score: 0.484 | Val Score: 0.656 | Epoch Time: 42.45 | <-- Checkpoint! |
Epoch 13 / 35 | Train Loss: 1.825 | Val Loss: 1.334 | Train Score: 0.479 | Val Score: 0.660 | Epoch Time: 45.92 | <-- Checkpoint! |
Epoch 14 / 35 | Train Loss: 1.791 | Val Loss: 1.264 | Train Score: 0.496 | Val Score: 0.672 | Epoch Time: 41.98 | <-- Checkpoint! |
Epoch 15 / 35 | Train Loss: 1.794 | Val Loss: 1.268 | Train Score: 0.491 | Val Score: 0.691 | Epoch Time: 45.79 | <-- Checkpoint! |
Epoch 16 / 35 | Train Loss: 1.772 | Val Loss: 1.259 | Train Score: 0.505 | Val Score: 0.703 | Epoch Time: 42.26 | <-- Checkpoint! |
Epoch 17 / 35 | Train Loss: 1.772 | Val Loss: 1.185 | Train Score: 0.506 | Val Score: 0.708 | Epoch Time: 46.34 | <-- Checkpoint! |
Epoch 18 / 35 | Train Loss: 1.747 | Val Loss: 1.147 | Train Score: 0.524 | Val Score: 0.742 | Epoch Time: 41.50 | <-- Checkpoint! |
Epoch 19 / 35 | Train Loss: 1.723 | Val Loss: 1.158 | Train Score: 0.533 | Val Score: 0.748 | Epoch Time: 45.79 | <-- Checkpoint! |
Epoch 20 / 35 | Train Loss: 1.687 | Val Loss: 1.119 | Train Score: 0.549 | Val Score: 0.742 | Epoch Time: 41.87 |
Epoch 21 / 35 | Train Loss: 1.686 | Val Loss: 1.138 | Train Score: 0.547 | Val Score: 0.735 | Epoch Time: 45.76 |
Epoch 22 / 35 | Train Loss: 1.720 | Val Loss: 1.133 | Train Score: 0.541 | Val Score: 0.743 | Epoch Time: 46.07 |
Epoch 23 / 35 | Train Loss: 1.678 | Val Loss: 1.095 | Train Score: 0.557 | Val Score: 0.758 | Epoch Time: 45.89 | <-- Checkpoint! |
Epoch 24 / 35 | Train Loss: 1.687 | Val Loss: 1.076 | Train Score: 0.547 | Val Score: 0.774 | Epoch Time: 45.05 | <-- Checkpoint! |
Epoch 25 / 35 | Train Loss: 1.651 | Val Loss: 1.067 | Train Score: 0.571 | Val Score: 0.780 | Epoch Time: 42.50 | <-- Checkpoint! |
Epoch 26 / 35 | Train Loss: 1.608 | Val Loss: 1.023 | Train Score: 0.586 | Val Score: 0.789 | Epoch Time: 46.18 | <-- Checkpoint! |
Epoch 27 / 35 | Train Loss: 1.591 | Val Loss: 1.021 | Train Score: 0.591 | Val Score: 0.798 | Epoch Time: 42.52 | <-- Checkpoint! |
Epoch 28 / 35 | Train Loss: 1.591 | Val Loss: 1.020 | Train Score: 0.600 | Val Score: 0.797 | Epoch Time: 46.23 |
Epoch 29 / 35 | Train Loss: 1.569 | Val Loss: 1.012 | Train Score: 0.606 | Val Score: 0.808 | Epoch Time: 42.52 | <-- Checkpoint! |
Epoch 30 / 35 | Train Loss: 1.552 | Val Loss: 0.977 | Train Score: 0.611 | Val Score: 0.814 | Epoch Time: 42.29 | <-- Checkpoint! |
Epoch 31 / 35 | Train Loss: 1.536 | Val Loss: 0.961 | Train Score: 0.623 | Val Score: 0.820 | Epoch Time: 44.93 | <-- Checkpoint! |
Epoch 32 / 35 | Train Loss: 1.553 | Val Loss: 0.969 | Train Score: 0.615 | Val Score: 0.824 | Epoch Time: 45.74 | <-- Checkpoint! |
Epoch 33 / 35 | Train Loss: 1.579 | Val Loss: 0.966 | Train Score: 0.611 | Val Score: 0.825 | Epoch Time: 41.65 | <-- Checkpoint! |
Epoch 34 / 35 | Train Loss: 1.534 | Val Loss: 0.941 | Train Score: 0.634 | Val Score: 0.824 | Epoch Time: 47.07 |
Epoch 35 / 35 | Train Loss: 1.572 | Val Loss: 0.953 | Train Score: 0.609 | Val Score: 0.825 | Epoch Time: 41.96 | <-- Checkpoint! |

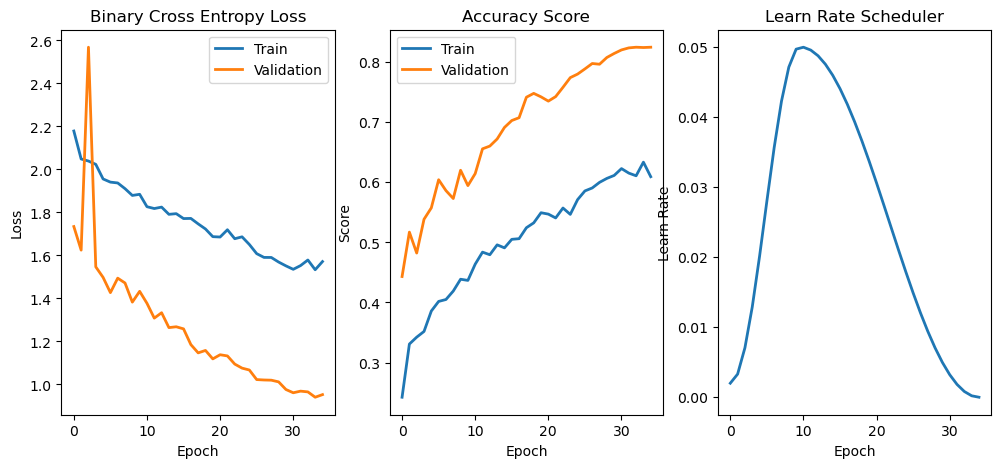

# Plot Training Phase
hF, vHa = plt.subplots(nrows = 1, ncols = 3, figsize = (12, 5))
vHa = np.ravel(vHa)
hA = vHa[0]
hA.plot(lTrainLoss, lw = 2, label = 'Train')
hA.plot(lValLoss, lw = 2, label = 'Validation')
hA.set_title('Binary Cross Entropy Loss')
hA.set_xlabel('Epoch')
hA.set_ylabel('Loss')
hA.legend()
hA = vHa[1]
hA.plot(lTrainScore, lw = 2, label = 'Train')
hA.plot(lValScore, lw = 2, label = 'Validation')
hA.set_title('Accuracy Score')
hA.set_xlabel('Epoch')
hA.set_ylabel('Score')
hA.legend()
hA = vHa[2]
hA.plot(lLearnRate, lw = 2)
hA.set_title('Learn Rate Scheduler')
hA.set_xlabel('Epoch')
hA.set_ylabel('Learn Rate')
Text(0, 0.5, 'Learn Rate')
(?) Explain the training loss vs. the validation loss.
(!) Replace the augmentation with
MixUp.(@) Train a model based on self implementation of ResNet / ResNeXt (Use
ResidualBlock).(@) Implement “Test Time” augmentation.
