Regression - Decision Tree

Fixel Algorithms

Regression - Decision Tree#

Notebook by:

Revision History#

Version

Date

User

Content / Changes

1.0.000

07/04/2024

Royi Avital

First version

Open In Colab

# Import Packages

# General Tools
import numpy as np
import scipy as sp
import pandas as pd

# Machine Learning
from sklearn.tree import DecisionTreeRegressor, plot_tree

# Miscellaneous
import math
import os
from platform import python_version
import random
import timeit

# Typing
from typing import Callable, Dict, List, Optional, Self, Set, Tuple, Union

# Visualization
import matplotlib as mpl
import matplotlib.pyplot as plt
import seaborn as sns

# Jupyter
from IPython import get_ipython
from IPython.display import Image
from IPython.display import display
from ipywidgets import Dropdown, FloatSlider, interact, IntSlider, Layout, SelectionSlider
from ipywidgets import interact

Notations#

  • (?) Question to answer interactively.

  • (!) Simple task to add code for the notebook.

  • (@) Optional / Extra self practice.

  • (#) Note / Useful resource / Food for thought.

Code Notations:

someVar    = 2; #<! Notation for a variable
vVector    = np.random.rand(4) #<! Notation for 1D array
mMatrix    = np.random.rand(4, 3) #<! Notation for 2D array
tTensor    = np.random.rand(4, 3, 2, 3) #<! Notation for nD array (Tensor)
tuTuple    = (1, 2, 3) #<! Notation for a tuple
lList      = [1, 2, 3] #<! Notation for a list
dDict      = {1: 3, 2: 2, 3: 1} #<! Notation for a dictionary
oObj       = MyClass() #<! Notation for an object
dfData     = pd.DataFrame() #<! Notation for a data frame
dsData     = pd.Series() #<! Notation for a series
hObj       = plt.Axes() #<! Notation for an object / handler / function handler

Code Exercise#

  • Single line fill

vallToFill = ???

  • Multi Line to Fill (At least one)

# You need to start writing
????

  • Section to Fill

#===========================Fill This===========================#
# 1. Explanation about what to do.
# !! Remarks to follow / take under consideration.
mX = ???

???
#===============================================================#

# Configuration
# %matplotlib inline

seedNum = 512
np.random.seed(seedNum)
random.seed(seedNum)

# Matplotlib default color palette
lMatPltLibclr = ['#1f77b4', '#ff7f0e', '#2ca02c', '#d62728', '#9467bd', '#8c564b', '#e377c2', '#7f7f7f', '#bcbd22', '#17becf']
# sns.set_theme() #>! Apply SeaBorn theme

runInGoogleColab = 'google.colab' in str(get_ipython())

# Constants

FIG_SIZE_DEF    = (8, 8)
ELM_SIZE_DEF    = 50
CLASS_COLOR     = ('b', 'r')
EDGE_COLOR      = 'k'
MARKER_SIZE_DEF = 10
LINE_WIDTH_DEF  = 2

# Courses Packages
import sys
sys.path.append('../')
sys.path.append('../../')
sys.path.append('../../../')
from utils.DataVisualization import PlotRegressionData

# General Auxiliary Functions

def PlotRegressor( hR: Callable, vX: np.ndarray, labelReg: str = 'Regressor', hA: Optional[plt.Axes] = None, figSize: Tuple = FIG_SIZE_DEF ):

    if hA is None:
        hF, hA = plt.subplots(figsize = figSize)
    else:
        hF = hA.get_figure()

    hA.plot(vX, hR(np.reshape(vX, (-1, 1))), c = 'r', lw = 2, label = labelReg)

    return hA

def PlotDecisionTree( splitCriteria: str, numLeaf: int, vX: np.ndarray, vY: np.ndarray, vG: np.ndarray ) -> plt.Axes:

    mX = np.reshape(vX, (-1, 1))
    mG = np.reshape(vG, (-1, 1))

    # Train the classifier
    oTreeReg = DecisionTreeRegressor(criterion = splitCriteria, max_leaf_nodes = numLeaf, random_state = 0)
    oTreeReg = oTreeReg.fit(mX, vY)
    scoreR2  = oTreeReg.score(mX, vY)

    hF, hA = plt.subplots(1, 2, figsize = (16, 8))
    hA = hA.flat

    # Decision Boundary
    hA[0] = PlotRegressor(oTreeReg.predict, vG, hA = hA[0])
    hA[0] = PlotRegressionData(vX, vY, hA = hA[0], axisTitle = f'Regression, R2 = {scoreR2:0.2f}')
    hA[0].set_xlabel('$x$')
    hA[0].set_ylabel('$y$')

    # Plot the Tree
    plot_tree(oTreeReg, filled = True, ax = hA[1], rounded = True)
    hA[1].set_title(f'Max Leaf Nodes = {numLeaf}')

    return hA

Decision Tree Regression#

The Decision Tree Regression is a non parametric model for regression.
It uses the mean statistics within the leaf box to estimate the value at the box.

  • (#) There are generalizations which estimate the value using local linear model within the leaf (Box).

# Parameters

# Data Generation (1st)
numSamples = 201
noiseStd   = 0.05


# Data Visualization
numGridPts = 500

Generate / Load Data#

Using a segmented function.

# Data Generating Function

def f( vX: np.ndarray ) -> np.ndarray:
    vY            = 0.5 * np.ones(vX.shape[0])
    vY[vX < 3.25] = 1
    vY[vX < 2.5 ] = 0.5 + (vX[vX < 2.5] / 5) - 0.25
    vY[vX < 1.5 ] = 0

    return vY

# Generate Data

vG = np.linspace(-0.5, 5.5, 1000) #<! Data Support Grid

vX = 5 * np.random.rand(numSamples)
vY = f(vX) + (noiseStd * np.random.randn(numSamples))

print(f'The features data shape: {vX.shape}')
print(f'The labels data shape: {vY.shape}')

The features data shape: (201,)
The labels data shape: (201,)

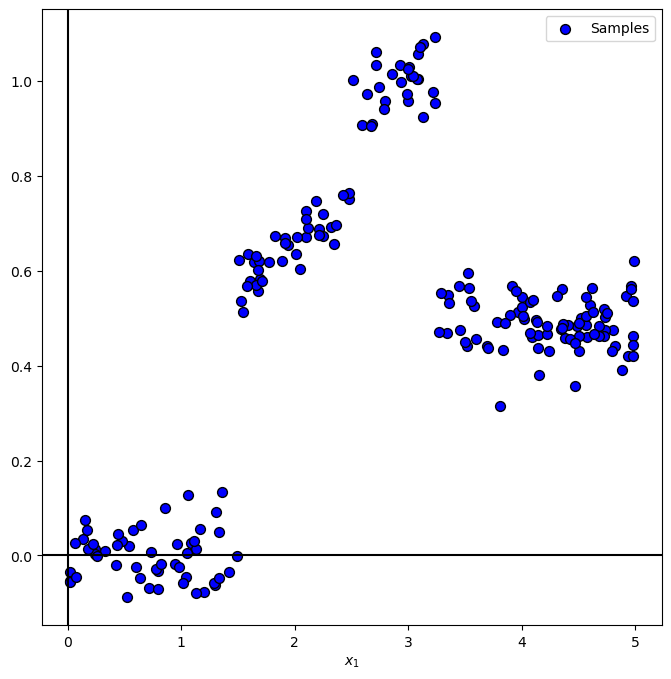

Plot Data#

# Plot the Data

PlotRegressionData(vX, vY)

plt.show()
../../../../_images/2fd31c6ba7c4b831dfda9b1e27c267d140e2b532b684c36d5904f5d7025154ff.png

Train a Decision Tree Regressor#

Decision trains, with enough degrees of freedom, can easily overfit to data (Represent any data).
Hence their tweaking is important.

The decision tree is implemented in the DecisionTreeRegressor class.

  • (#) The SciKit Learn default for a Decision Tree tend to overfit data.

  • (#) The max_depth parameter and max_leaf_nodes parameter are usually used exclusively.

  • (#) We can learn about the data by the orientation of the tree (How balanced it is).

  • (#) Decision Trees are usually used in the context of ensemble (Random Forests / Boosted Trees).

# Plotting Wrapper

hPlotDecisionTree = lambda splitCriteria, numLeaf: PlotDecisionTree(splitCriteria, numLeaf, vX, vY, vG)

# Interactive Visualization

splitCriteriaDropdown   = Dropdown(options = ['squared_error', 'friedman_mse', 'absolute_error'], value = 'squared_error', description = 'Split Criteria')
numLeafSlider           = IntSlider(min = 2, max = 25, step = 1, value = 2, layout = Layout(width = '30%'))
interact(hPlotDecisionTree, splitCriteria = splitCriteriaDropdown, numLeaf = numLeafSlider)

plt.show()

  • (?) What are the values beyond the original domain?
