Gradient Boosting Regression#

In this note book we’ll use the Gradient Boosting based regressor in the task of estimating a function model based on measurements.
The gradient boosting is a sequence of estimators which are built in synergy to compensate of the weaknesses of the previous models.

(#) In this notebook we use SciKit’s Learn GradientBoostingClassifier.
In practice it is better to use more optimized implementations:
- XGBoost.
- LightGBM.
- CatBoost.
(#) All implementations above offer a SciKit Learn compatible API.
(#) SciKit Learn has LightGBM style implementation in the form of HistGradientBoostingClassifier which is faster and more suitable for large data set.
(#) In this case we usually after higher bias and lower variance. Namely each model should be lean.
(#) The Gradient Boosting approach is currently considered the go to approach when working on tabular data.

# Parameters

# Data
numSamples  = 150
noiseStd    = 0.1

# Model
numEstimators = 200
learningRate  = 0.1

# Feature Permutation
numRepeats = 50

Generate / Load Data#

In the following we’ll generate data according to the following model:

\[ y_{i} = f \left( x_{i} \right) + \epsilon_{i} \]

Where

\[ f \left( x \right) = \sin \left( 20 x \right) + \sin \left( 10 {x}^{1.1} \right) + \frac{x}{10} \]

# Data Generation Function

def f( vX: np.ndarray ) -> np.ndarray:
    return np.sin(20 * vX) * np.sin(10 * (vX ** 1.1)) + (0.1 * vX)

# Generating Data

vX = np.sort(np.random.rand(numSamples))
vY = f(vX) + (noiseStd * np.random.randn(numSamples))

print(f'The features data shape: {vX.shape}')
print(f'The labels data shape: {vY.shape}')

The features data shape: (150,)
The labels data shape: (150,)

Plot Data#

# Plot the Data

hF, hA = plt.subplots(figsize = (12, 4))
hA = PlotRegressionData(vX, vY, hA = hA)
hA.set_xlabel('$x$')
hA.set_ylabel('$y$')

plt.show()

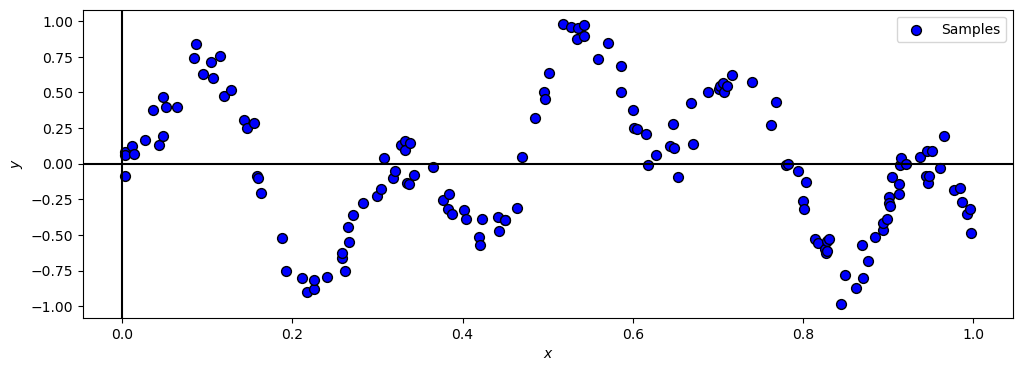

../../../../_images/c3b5ec108c99f42e08ee12e53e1b1f0bd606a29d9e353912d095e94161ba74d0.png

(?) What model will the ensemble of decision trees apply on the data?

Train a Gradient Boosting Model#

In this section we’ll trina a gradient boosting model and recreate its prediction process manually.

The Gradient Boosting model accumulates estimators sequentially by:

\[ {\color{orange} {H}_{M} \left( \boldsymbol{x} \right)} = \sum_{m=1}^{M}{\color{magenta}\alpha} {\color{orange} {h}_{m} \left( \boldsymbol{x} \right)} \]

Where \({h}_{m}\) is optimized to minimize the loss function of the \({\color{orange} {H}_{m} \left( \boldsymbol{x} \right)} = {\color{orange} {H}_{m - 1} \left( \boldsymbol{x} \right)} + \alpha {h}_{m}\) model with respect to \({h}_{m}\).

# Constructing and Training the Model
oGradBoostReg = GradientBoostingRegressor(n_estimators = numEstimators, learning_rate = learningRate)
oGradBoostReg = oGradBoostReg.fit(np.reshape(vX, (-1, 1)), vY)

# Plot the Model by Number of Estimators

def PlotGradientBoosting(numEst: int, learningRate: float, hF: Callable, oGradBoostReg: GradientBoostingRegressor, vX: np.ndarray, vY: np.ndarray, vG: np.ndarray):
    vYPredX = 0 * vX
    vYPredG = 0 * vG
    #<! Building the ensemble of trees
    for ii in range(numEst):
        vYPredG += learningRate * oGradBoostReg.estimators_[ii, 0].predict(np.reshape(vG, (-1, 1))) #<! The `estimators_` is 2D array (Single Column Matrix)
        vYPredX += learningRate * oGradBoostReg.estimators_[ii, 0].predict(np.reshape(vX, (-1, 1)))

    _, hA = plt.subplots(nrows = 1, ncols = 2, figsize = (14, 6))
    hA[0].plot(vG, hF(vG), 'b', label = '$f(x)$')
    hA[0].plot(vG, vYPredG, 'g', label = '$\hat{f}(x)$')
    hA[0].plot(vX, vY, '.r', label = '$y_i$')
    hA[0].set_title (f'Gradient Boosting: {numEst} Trees')
    hA[0].set_xlabel('$x$')
    hA[0].grid(True)
    hA[0].legend()

    hA[1].plot(vX, vY, '.r', label = '$y_i$')
    hA[1].stem(vX, vY - vYPredX, '.m', label = '$\hat{r}_i$', markerfmt = '.m')
    hA[1].axhline(y = 0, color = 'k')
    hA[1].set_title (f'Gradient Boosting: Residuals')
    hA[1].set_xlabel('$x$')
    hA[1].grid(True)
    hA[1].legend()

    plt.show()

# Plotting Wrapper
vG = np.linspace(0, 1, 1000)
hPlotGradientBoosting = lambda numEst: PlotGradientBoosting(numEst, learningRate, f, oGradBoostReg, vX, vY, vG)

# Interactive Plot
numEstSlider = IntSlider(min = 1, max = oGradBoostReg.n_estimators_, step = 1, value = 1, layout = Layout(width = '30%'))
interact(hPlotGradientBoosting, numEst = numEstSlider)

plt.show()
