Manifold Learning - multi model compare

Notebook by:

• Royi Avital RoyiAvital@fixelalgorithms.com

Revision History

Version	Date	User	Content / Changes
1.0.000	13/04/2024	Royi Avital	First version

# Import Packages

# General Tools
import numpy as np
import scipy as sp
import pandas as pd

# Machine Learning
from sklearn.datasets import load_wine, load_breast_cancer, load_digits
from sklearn.manifold import TSNE, SpectralEmbedding, Isomap
from sklearn.preprocessing import StandardScaler
from umap import UMAP

# Miscellaneous
import math
import os
from platform import python_version
import random
import timeit

# Typing
from typing import Callable, Dict, List, Optional, Self, Set, Tuple, Union

# Visualization
import matplotlib as mpl
import matplotlib.pyplot as plt
import seaborn as sns

# Jupyter
from IPython import get_ipython
from IPython.display import Image
from IPython.display import display
from ipywidgets import Dropdown, FloatSlider, interact, IntSlider, Layout, SelectionSlider
from ipywidgets import interact

2024-05-12 10:10:10.666349: I tensorflow/core/platform/cpu_feature_guard.cc:182] This TensorFlow binary is optimized to use available CPU instructions in performance-critical operations.
To enable the following instructions: SSE4.1 SSE4.2 AVX AVX2 AVX512F AVX512_VNNI FMA, in other operations, rebuild TensorFlow with the appropriate compiler flags.

Notations

• (?) Question to answer interactively.

• (!) Simple task to add code for the notebook.

• (@) Optional / Extra self practice.

• (#) Note / Useful resource / Food for thought.

Code Notations:

someVar    = 2; #<! Notation for a variable
vVector    = np.random.rand(4) #<! Notation for 1D array
mMatrix    = np.random.rand(4, 3) #<! Notation for 2D array
tTensor    = np.random.rand(4, 3, 2, 3) #<! Notation for nD array (Tensor)
tuTuple    = (1, 2, 3) #<! Notation for a tuple
lList      = [1, 2, 3] #<! Notation for a list
dDict      = {1: 3, 2: 2, 3: 1} #<! Notation for a dictionary
oObj       = MyClass() #<! Notation for an object
dfData     = pd.DataFrame() #<! Notation for a data frame
dsData     = pd.Series() #<! Notation for a series
hObj       = plt.Axes() #<! Notation for an object / handler / function handler

Code Exercise

• Single line fill

vallToFill = ???

• Multi Line to Fill (At least one)

# You need to start writing
????

• Section to Fill

#===========================Fill This===========================#
# 1. Explanation about what to do.
# !! Remarks to follow / take under consideration.
mX = ???

???
#===============================================================#

# Configuration
# %matplotlib inline

seedNum = 512
np.random.seed(seedNum)
random.seed(seedNum)

# Matplotlib default color palette
lMatPltLibclr = ['#1f77b4', '#ff7f0e', '#2ca02c', '#d62728', '#9467bd', '#8c564b', '#e377c2', '#7f7f7f', '#bcbd22', '#17becf']
# sns.set_theme() #>! Apply SeaBorn theme

runInGoogleColab = 'google.colab' in str(get_ipython())

# Constants

FIG_SIZE_DEF    = (8, 8)
ELM_SIZE_DEF    = 50
CLASS_COLOR     = ('b', 'r')
EDGE_COLOR      = 'k'
MARKER_SIZE_DEF = 10
LINE_WIDTH_DEF  = 2

# Courses Packages

# General Auxiliary Functions

Dimensionality Reduction

In this exercise we’ll compare different methods for dimensionality reduction on real world data sets.

In this notebook:

• We’ll compare 4 methods: IsoMap, t-SNE (Implemented as TSNE), Laplacian Eigenmaps (Implemented as SpectralEmbedding) and UMAP (Implemented in the UMAP Package).

• We’ll use 3 different datasets: load_wine, load_breast_cancer, load_digits.

The SpectralEmbedding method is an eigen decomposition of the Laplacian Matrix of the data graph.
It allows, similar to t-SNE keep the local structure of the high dimension data in the low dimension.

# Parameters

#===========================Fill This===========================#
# 1. Create a list of the data sets loaders / generators.
# 2. Create a list of the data sets names.
lData      = [load_breast_cancer, load_wine, load_digits]
lDataStr   = ['Breast Cancer', 'Wine', 'Digits']
#===============================================================#

#===========================Fill This===========================#
# 1. Create a list of the dimensionality reduction operators.
# 2. Create a list of the dimensionality reduction operators names.
#!! Set the parameters of the models in this phase.
lMethod    = [Isomap(n_neighbors = 10, n_components = 2), SpectralEmbedding(n_components = 2), TSNE(n_components = 2), UMAP(n_components = 2)]
lMethodStr = ['Isomap', 'Laplacian Eigenmaps', 'TSNE', 'UMAP']
#===============================================================#

# Colors
lC         = ['r', 'g', 'b', 'c']

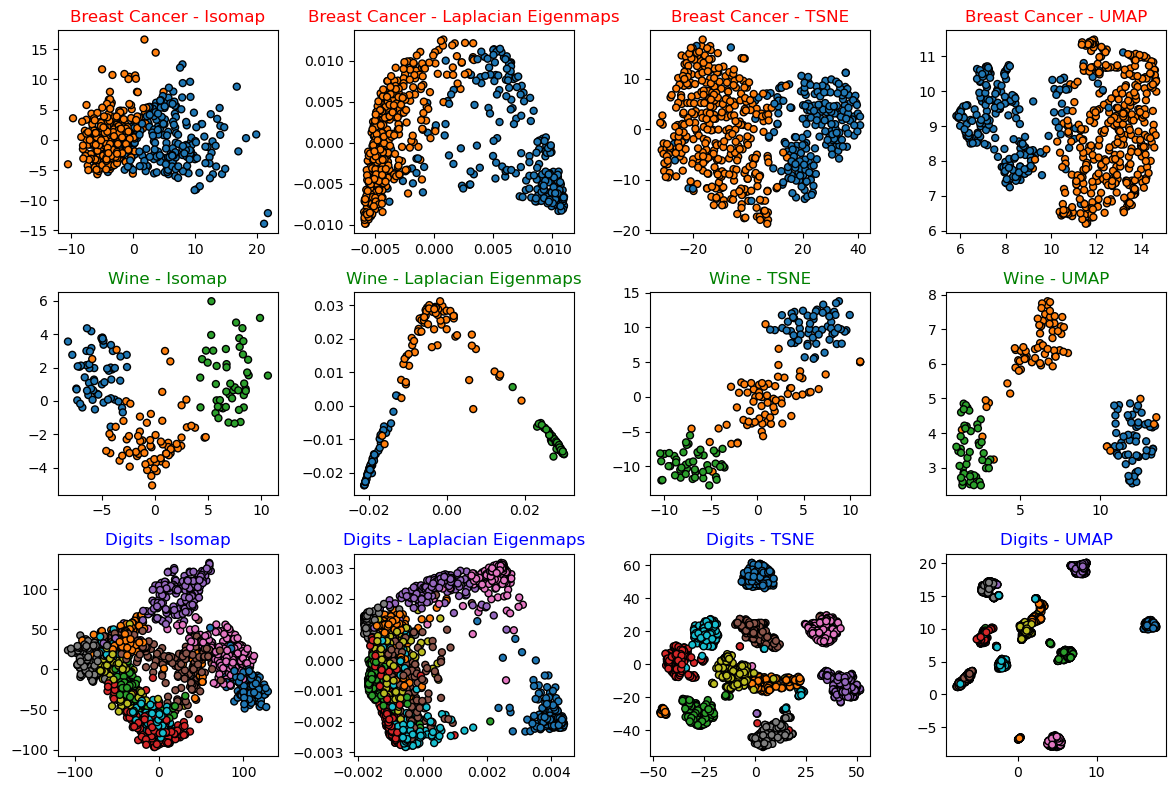

Analyze the Methods

hF, hA = plt.subplots(nrows = len(lData), ncols = len(lMethod), figsize = (12, 8))

for ii, Data in enumerate(lData):
    mX, vY = Data(return_X_y = True)

    if lDataStr[ii] != 'Digits':
        mX = StandardScaler().fit_transform(mX)

    for jj, oMethod in enumerate(lMethod):
        mZ = oMethod.fit_transform(mX)

        hA[ii, jj].scatter(*mZ.T, s = 25, c = vY, edgecolor = 'k', cmap = 'tab10', vmin = -1/2, vmax = 9.5)
        hA[ii, jj].set_title(f'{lDataStr[ii]} - {lMethodStr[jj]}', color = lC[ii])

plt.tight_layout()
plt.show()

/data/solai/venvMamabaFixel/lib/python3.11/site-packages/threadpoolctl.py:1010: RuntimeWarning:
Found Intel OpenMP ('libiomp') and LLVM OpenMP ('libomp') loaded at
the same time. Both libraries are known to be incompatible and this
can cause random crashes or deadlocks on Linux when loaded in the
same Python program.
Using threadpoolctl may cause crashes or deadlocks. For more
information and possible workarounds, please see
    https://github.com/joblib/threadpoolctl/blob/master/multiple_openmp.md

  warnings.warn(msg, RuntimeWarning)

• (?) In case we’re after optimization of the Hyper Parameters of the models, how would you set the score?

use classifier to evaluate the results

• use the 2 features we got

2

• (!) Try to optimize the model parameters.
